View and export your results

With the help of many graphs, highlight your data.

Is your study completed, the conversion factors have been corrected, and the construction site contributors have been informed? You will be able to move on to the visualisation phase of your results!

1. Start the calculation

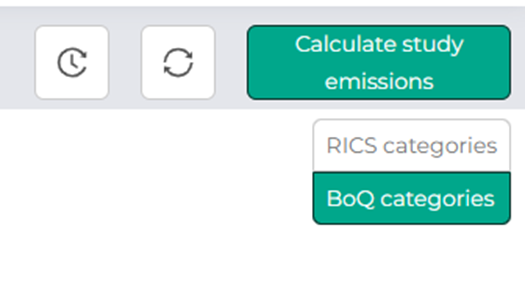

To do this, click on "Calculate study emissions" at the top right of your screen from the Achievement tab.

Note that if there are still red lines in your study, they will not be counted!

Start the calculations will take you to the Results tab. This has several tabs which are described below. They allow you to get different views of your shows depending on the approach you're interested in.

2. Quality indicators

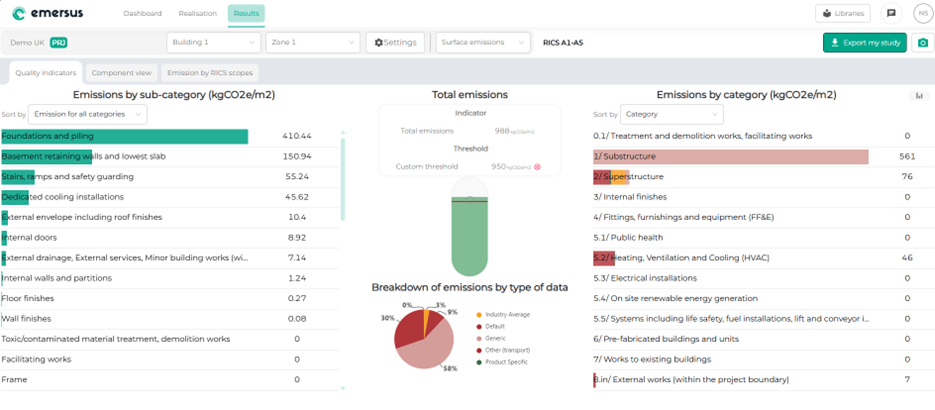

The first tab you get to when you run the calculations is the "Quality Indicators" tab. This is a verification step before you dive deeper into the results.

The quality indicators propose, by a specific area:

• A visualization of emissions by categories or sub-categories,
• Your total emissions, as well as the custom threshold you have set,
• The distribution of product specific, industry average, default, generic and other types of datasets that have been used,
• Emissions per category and their proportion by type of EPD.




For your custom threshold to appear, do not forget to select the exact building and zone you want to verify!

If these indicators seem satisfactory to you, move on to the main results! If not, go back to the realisation, and come back when you have corrected the inconsistencies thus flushed out.

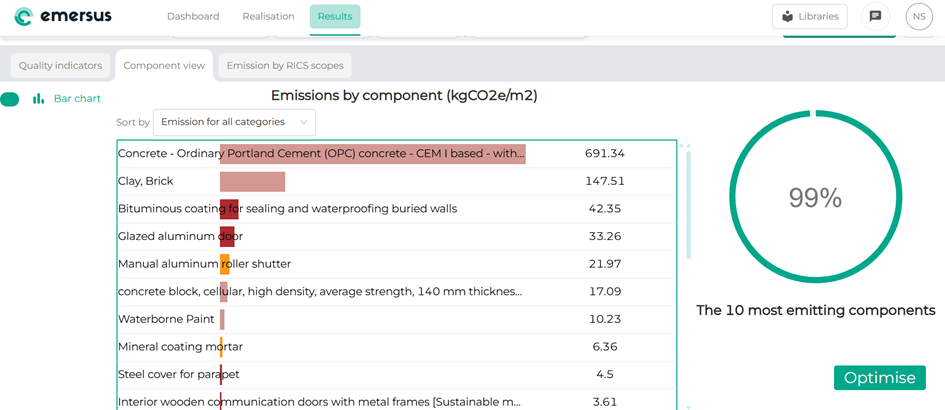

3. Component view

All the components of the study are included in this section. The components are sorted according to their emission, in descending order. In addition, the colour associated with the component's emissions gives information on the type of EPD used to calculate them.

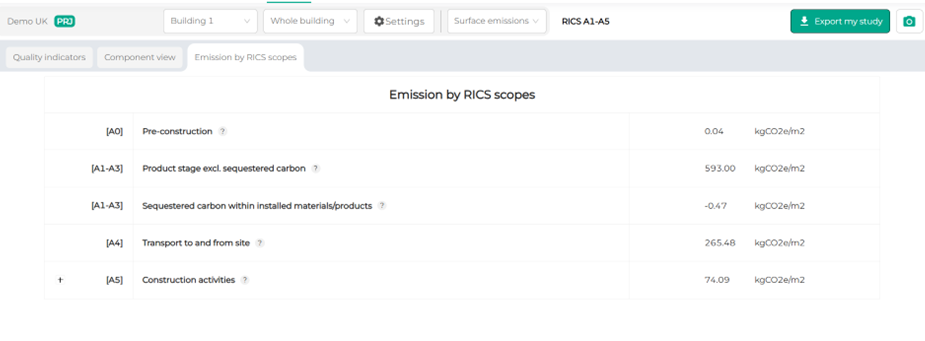

4. Emissions by RICS scopes

Emersus also shows your impacts classified by the different RICS scopes.

5. Export your results

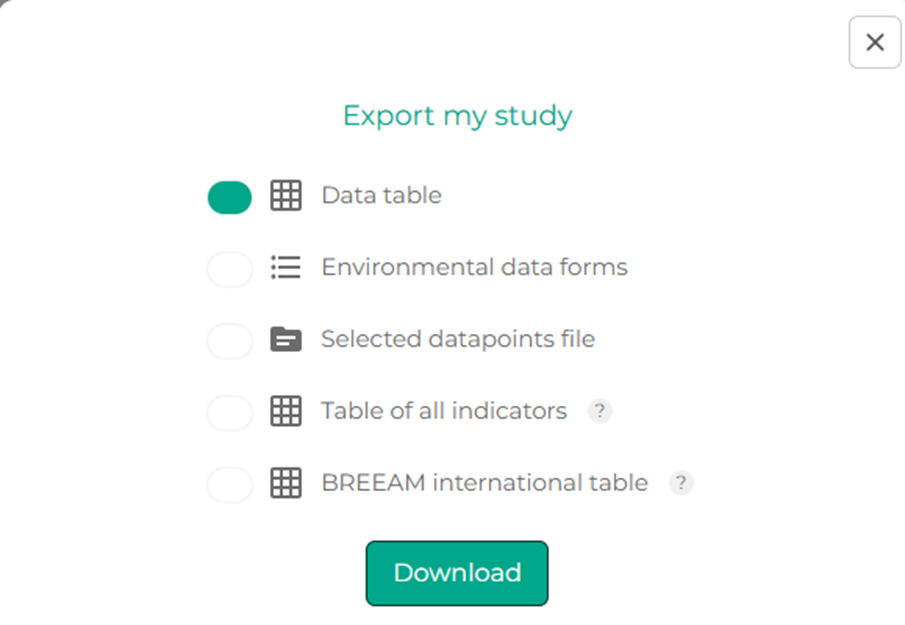

If you are satisfied with the quality indicators, the results are in line with your expectations and you have completed your study, it may be time to export it to share it with your employees!

At the top right of your screen are two buttons. The one with the camera allows you to download all or some of the graphs seen in the Results.
